QBX 18 Balloon Expandable Stent System

Devices with 5 F Sheath Compatibility or smaller
Cobalt Chromium Alloy

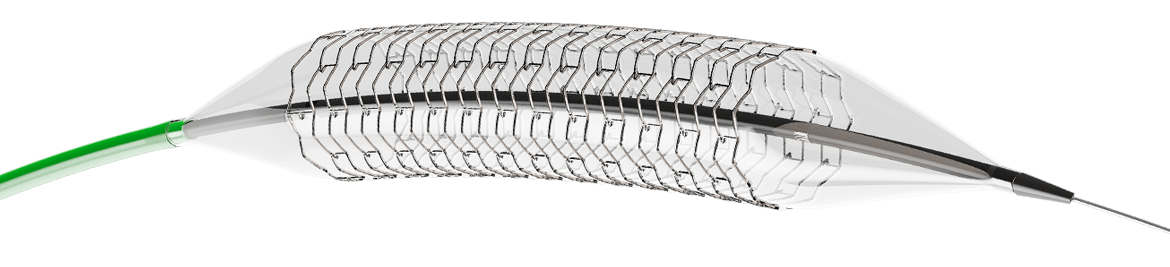

The QBX (5 F) is a flexible, balloon expandable stent, made of cobalt chromium alloy. Micro-Invasive designed for peripheral vessel diameters from 5.0 mm to 10.0 mm. The QBX (5 F) is mounted on an 0.018 over-the-wire (OTW) delivery system and is available in a full range of diameters and lengths.

The Peripheral Balloon Expandable Stent System provides a means of safely advancing the stent through the peripheral vessels to the desired location.

Key Features

> 5 F Introducer compatibility for all sizes
> Low crossing profile for all diameters
> Combination low shaft and tip entry profile
> Soft, tapered balloon tip for less trauma
> Flexible stent design
> High radial strength

Benefits

> Simple to use
> Reduce puncture site diameter
> Easy deployment and precise placement
> Even and accurate stent expansion
> Good accessibility and high pushability across the peripheral vessels


Technical Specifications

Download our MIT Catalogue for a full range of available products and order codes.

For further inquiries regarding any of our products,
call +49 41 71 65 78 0 or email us at info@qualimed.de
